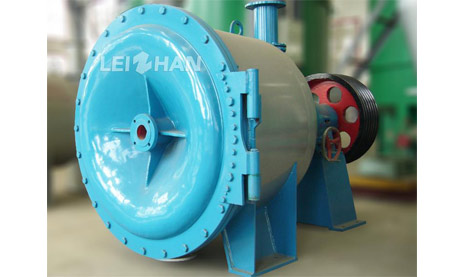

ZDF Series Single Fiber Separator

ZDF series single fiber separator is mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp. It also can be used as tail pulp treatment equipment.



Features

1. Mainly used for secondary breaking and screening of waste paper pulp, meanwhile, separating the light and heavy impurities from pulp.

2. Specially designed cone structure can better break fiber, and can effectively separate and remove light and heavy impurities.

3. Automatically discharge according to requirement, run reliably.



Technical Data

Type ZDF2 ZDF3 ZDF4 ZDF5
Diameter of Blade(mm) ɸ560 ɸ720 ɸ980 ɸ1100
Production Capacity(t/d) 30-50 60-80 100-180 165-265
Pressure of Input Pulp(Mpa) 0.2-0.3
Concentration of Input Pulp(%) 2.5-4.0
Power of Motor 37 55 90 110
