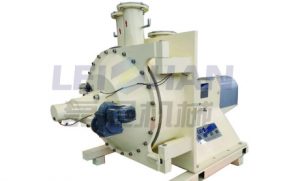

RF Series Double Disc Refiner

RF Series Double Disc Refiner is a new generation of waste paper pulping equipment, which is suitable for 3-6% consistency’s chemical pulp, waste paper pulp and other pulp’s continuous beating, which is an ideal pulping equipment at present.



Features

1. Mainly used for pulping,improving slurry beating degree to meet the paper making needs.

2. It can be installed variety tooth refiner plate. Suitable various raw materials such as wood pulp, mechanical pulp, chemical pulp, waste paper pulp, etc.

3. Adopt constant power control system , beating effect is stable.

4. Accurate retract mechanism , easy to control, the beating effect is good.



Technical Data

Type

RF20 RF26

RF34

RF42 RF52

Disc diameter (mm)

20-24 26-30 34-38 42-48 52-58

Range of op.consistency (%)

3.5-6.0
Min.flow (L/Min 4%) 400 700 1400 2200 6000

Max.flow(L/min 4%)

2400 4500

9000

16000 22000

Max.power(KW)

315 500

900

1700 3000
