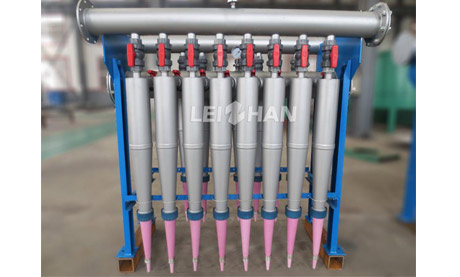

KH Series Low Density Cleaner
KH Series Low Density Cleaner is mainly used for removing heavy impurities in the pulp like gravel, scrap iron, dust and large ink particles in paper making process.
Features
1.Divided design, the cleaners can be divided into 3-4 parts ,which make it easier for disassembly, assembly and replace.
2.Different deslagging ways: open and closed type impurity discharge to meet different working environment.
3.The bottom of cone adapt wear-resistant ceramics. It ensures the stable deslagging and long service life.
Technical Data
| Type | LZ450 |
| Passing Capacity of Single Equipment(L/min) | 450 |
| Max Operating Temperature(℃) | 70 |
| Max Operating Pressure(Mpa) | 0.4 |
| Inlet Consistency(%) | ≤2% |
| Washing Water Flow(L/min) | 20-60L/min |
Working Principle
The machine is using the difference proportion between fibers and impurities to separate the impurities.
The slurry will rotate at high speed after into the cleaners in tangential direction under pressure,due to the different centrifugal force,fibers and impurities will produce radial stratification. A large proportion of heavy impurities left behind the wall. Under gravity downwardly along the wall into the lower cone.
With the radius of rotation decreases, the slurry flow rate loss is compensated to ensure that the centrifugal force to be strengthened, so that the movement of heavy impurities to the tailings discharge port.Light impurities and fibers move to the central area of low pressure gradually during they are in downward movement.
They will rotational increase after reaching the bottom of the diffuser tube into the central chamber, the gas and other light impurities than fiber will move to the center , and then discharged after rising to the top.Fine pulp put the rotational kinetic energy into pressure energy and then output from the side wall.
