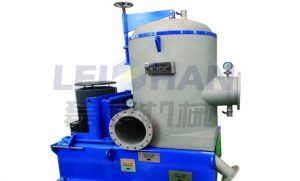

JNS Series Energy-Saving Pressure Screen
JNS Series Energy-Saving Pressure Screen is mainly used for coarse screening system in paper pulp processing line. Its unique design can reduce heavy impurities and rotor and screen basket contact, prolong the life of the equipment.
Features
1. Upflow design, bottom inlet, reduce heavy impurities and rotor and screen basket contact, prolong the life of the equipment.
2. Lower energy consumption, greatly reducing the power consumption of screening section.
3. Specially designed rotor, better screening effect.
Technical Data
| Model | 0.9 | 1.5 | 2 | 3 | 4 | ||
| Screen area（m2） | 1.07 | 1.81 | 2.26 | 3.28 | 4.0 | ||
| Hole size (mm) | Ф1.6-3.5Ф | ||||||
| Slot size (mm) | 0.10-0.65 | ||||||
| Inlet consistency(%) | 1-4 | ||||||
| Production Capacity(t/d) | 180-220 | 220-360 | 300-450 | 440-660 | 600-800 | ||
| Motor Power(kw) | 37-55 | 55-75 | 75-90 | 90-110 | 110-460 | ||
Working Principle
Energy-Saving Pressure Screen for Paper Mill is mainly used coarse screen system in paper pulp processing line. Energy saving pressure screen has unique design can reduce heavy impurities and rotor and screen basket contact, prolong the life of the equipment.
