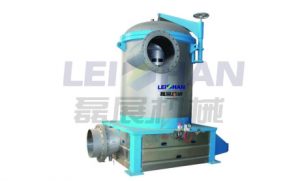

NLS Series Inflow Pressure Screen
NLS series inflow pressure screen is advanced paper pulp screening equipment in the modern world, which has great ability of screening function and low pulse. It is widely used in the fine screening of wood pulp, straw pulp and waste paper pulp, especially suitable as the net filter before paper machine.
Features
1. Small motor power, high production capacity, energy saving.
2. Inflow structure, low pulse, good effect of homogenate.
3. No gaskets companion flange pulp outlet, inwall is polished. Seamless connection of flow pipeline, no fiber hitching.
4. Advanced structure, sturdy and durable, convenient disassembly and assembly, simple operation, less malfunctions for continuous working, low maintenance cost.
5. Long pulping residence time, sufficient fiber relief, low rate fine fiber loss.
Technical Data
| Type | NLS0.6 | NLS1 | NLS1.5 | NLS2 | NLS3 |
| Screen Area (m2) | 0.6 | 1 | 1.5 | 2 | 3 |
| Concentration of Input Pulp(%) | 0.4-0.8 | ||||
| Capacity (Screen Hole) (t/d) | 30-60 | 70-130 | 110-160 | 140-260 | 250-400 |
| Capacity (Screen Slot) (t/d) | 25-45 | 55-80 | 80-120 | 100-160 | 150-300 |
| Pressure of Inflow Pulp(mpa) | 0.1-0.4 | ||||
| Motor Power (kw) | 7.5-15 | 22 | 30 | 37 | 45 |
Technical Data
| Type | NLS4 | NLS5 | NLS6 | NLS7 |
| Screen Area (m2) | 4 | 5 | 6 | 7 |
| Concentration of Input Pulp(%) | 0.4-0.8 | |||
| Capacity (Screen Hole) (t/d) | 260-520 | 350-600 | 420-700 | 500-900 |
| Capacity (Screen Slot) (t/d) | 180-320 | 220-400 | 260-480 | 350-600 |
| Pressure of Inflow Pulp(mpa) | 0.1-.0.4 | |||
| Motor Power (kw) | 55 | 75 | 90 | 110 |
Working Principle
NLS series inflow pressure screen is a continuing screening equipment under the fully closed position with pressure.
When works, the pulp enters into the outside of screen drum along the tangent direction through the pulp pipe.
Qualified pulp enter into screen drum through the sieve seam (hole), with the help of pressure difference between inside and outside of screen drum, then come out through the pulp pipe.
The pulp and impurities which can not through the sieve seam (hole) fall down to the bottom, and come out from the discharge pipe. Rotating blade outside the screen drum can produce a moderate pressure, which improves the circulation flow of pulp, its tail will produce a negative pressure, which has an effect of backwash sieve seam (hole).
It can prevent the sieve seam (hole) congestion, and pulp can smooth enter through the sieve screening (hole) from the surface constantly, which ensures the continuous operation.
