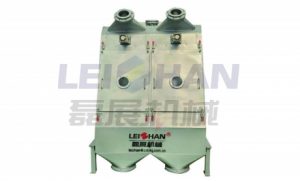

HXS Series Arc Screen
HXS Series Arc Screen is mainly used to process white water in various pulping and papermaking processes to recover fibers, and to screen and concentrate slurry and tailings pulp in cleaning systems.
Features
1. White water purification:
(1) White water purification of paper machine is used for spray water.
(2) Purification and reuse of press water of paper machine.
2. Fiber fractionating:
(1) Fractionating of long and short fibers.
(2) Separation of large fiber bundles.
3. Separation of fiber and filler:
(1) Washing the deinking pulp.
(2) Washing the coated broken pulp.
4. Sewage treatment: remove solid suspended solids.
Technical Data
| Type | HXS1 | HXS2 | HXS3 | ||||
| Area(m²) | 1.26 | 2.52 | 3.78 | ||||
| Inlet Pulp pressure(Mpa) | 0.15-0.25 | ||||||
| Inlet pulp concentration (%) | ≤2.5 | ||||||
| Throughput(thicken pulp): m³/h | 108-180 | 216-360 | 324-540 | ||||
| Screen slot(thicken pulp): mm | 0.15-0.3 | ||||||
| Screen slot(white water recovery): mm | 0.05-0.2 | ||||||
