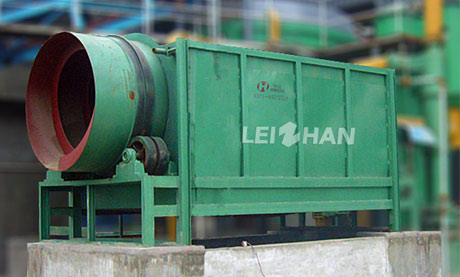

ZST Series Drum Screen
Drum screen is used to remove light impurity in waste paper pulping system.
Features
1. Mainly used for removing large light impurities in waste paper pulping system.
2. Optimized helical blade and water spray system ensure the high purity of impurities and less loss of fiber.
3. Simple structure, reliable operation and easy maintenance.
4. Effective screening, low motor power.
Technical Data
| Type | ZST1A | ZST2A | ZST4A |
| Diameter of screen drum(mm) | Φ1000 | Φ1500 | Φ2000 |
| Passing capacity(L/min) | 3000-5000 | 6000-8000 | 9000-12000 |
| Motor power(Kw) | 4 | 5.5 | 11 |
Working principle
Drum screen provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process.
This method of screening helps to reduce operating and investment cost and increase product quality, while allowing rapid and large volume processing.
It is made of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
